Introduction:

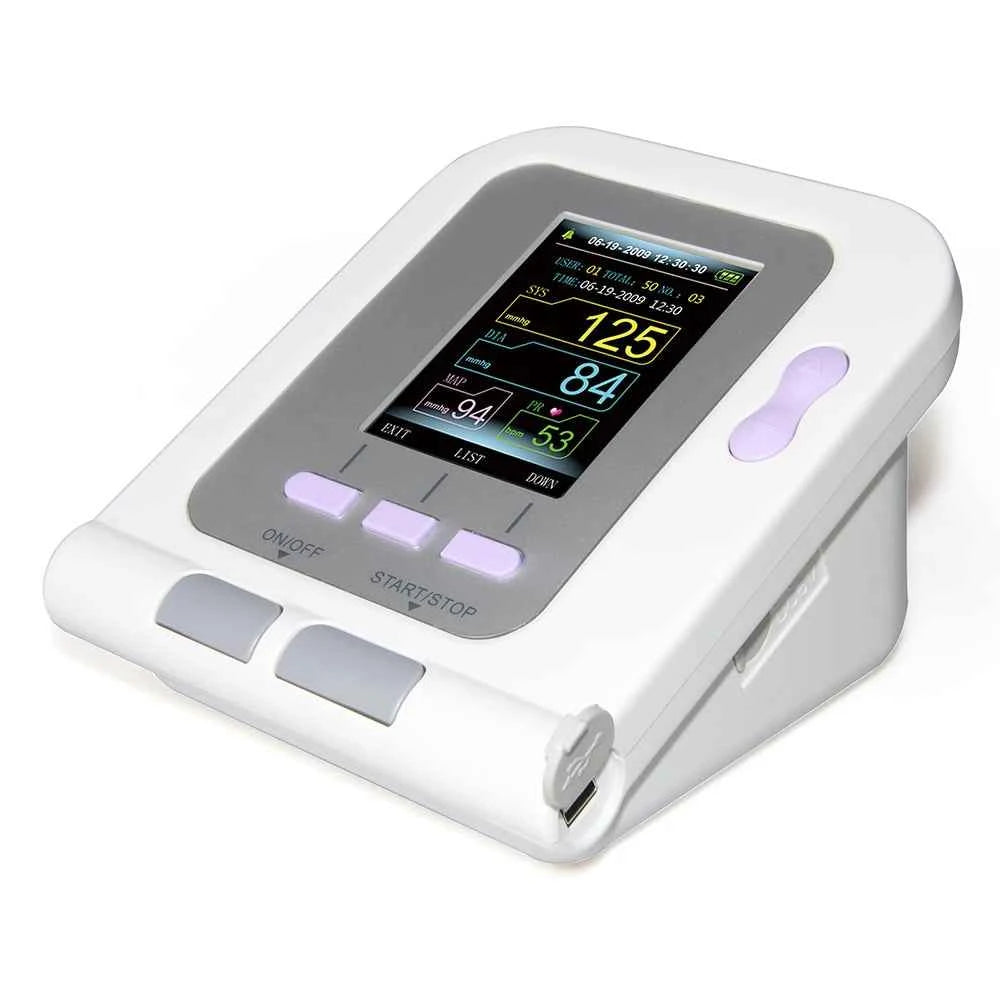

CONTEC08A-VET is an Electronic Sphygmomanometer that can measure blood pressure for animals. The device features in full-automatic measurement, high-definition color LCD display and strong visibility. It has integrated parameter measure, display and record output in one device, and it adopts data review interface such as "data list", "trend chart", "big font" with easy and simple operation. It can be applied to routine test of family pets, animal hospital, clinic and farm, etc.



Features:

High-definition color LCD display, strong visibility.

Data storage function, up to 100 groups of data can be stored, by which measured data can be reviewed.

One-touch operation, automatic BP measurement, adopts oscillometric multistep deflation measurement method, good repeatability. When measurement error happens, device will prompt error message.

Physiological alarm function, alarm limits can be set the alarm limits. When blood pressure is higher than the high limit or lower than the low limit, the alarm will occur. Alarm switch can be set.

Supply two kinds of units: Kpa/mmHg, which can be set as user’s need. Audial and visual prompt when power is low.

With short-time power storage function, when replacing the battery, the clock time function can't be affected.

Three cuff mode: large, medium, small. User can choose corresponding cuff and cuff mode according to different body type of animals.

Store measured results with date and time.

Function of automatic power-off.

Performance:

BP:

Measurement method: Oscillometric method

Measurement range: 0kPa (0mmHg)～38.67kPa (290mmHg)

Resolution: 1mmHg

Accuracy: Static pressure: ±0.4kPa(±3mmHg)

Inflation: automatic inflation by force pump

Deflation: automatic multistep deflation

Display: 2.8" color LCD screen

Power: four “AA” batteries/5V or 6V power adapter

Safety: class Ⅱ device type BF applied part



Physical characteristic:

Dimension: 130mm(L) ×110mm(W) × 80mm(H)

Weight: 300 g (without battery)

Operational environment

Temperature: 5 ˚C～40 ˚C

Relative humidity: 15%～80%

Atmospheric pressure: 700hPa～1060hPa

Storage environment:

Temperature: -20˚C ~ +55 ˚C

Relative humidity: ≤95 %

Atmospheric pressure: 700hPa～1060hPa

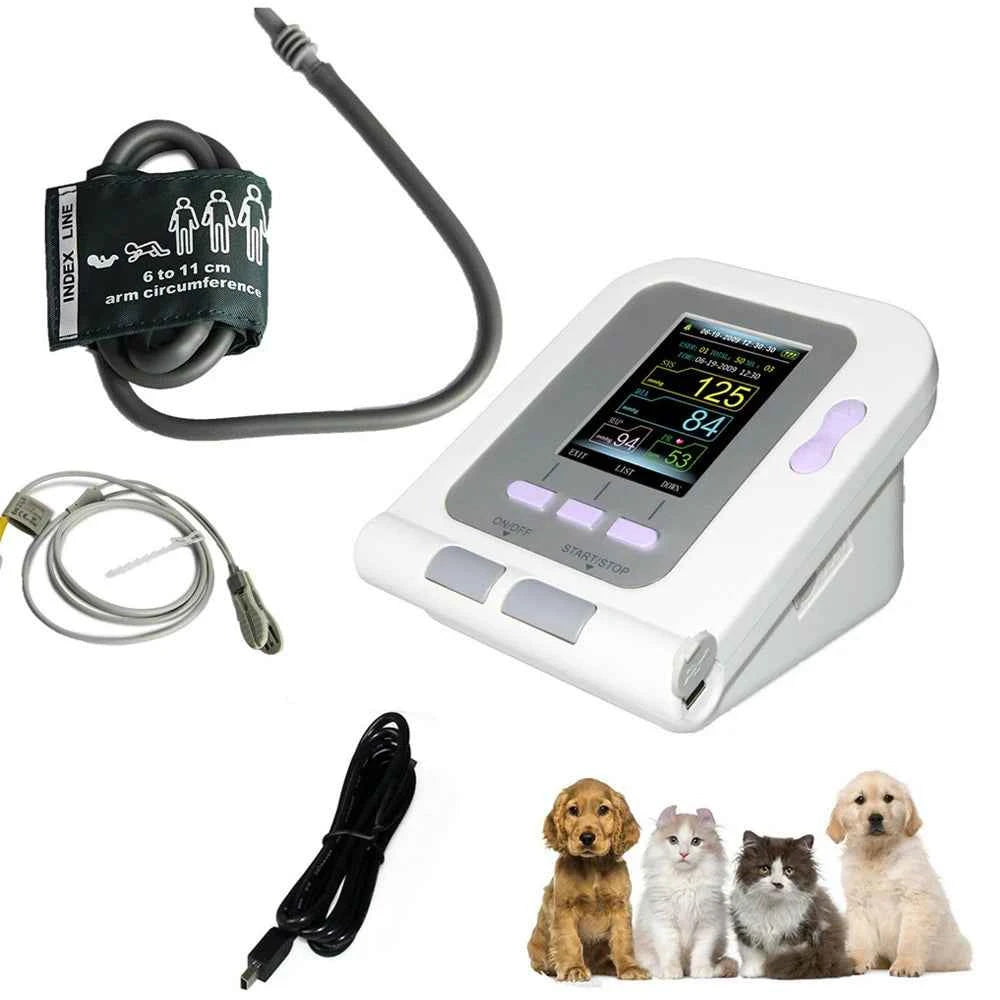

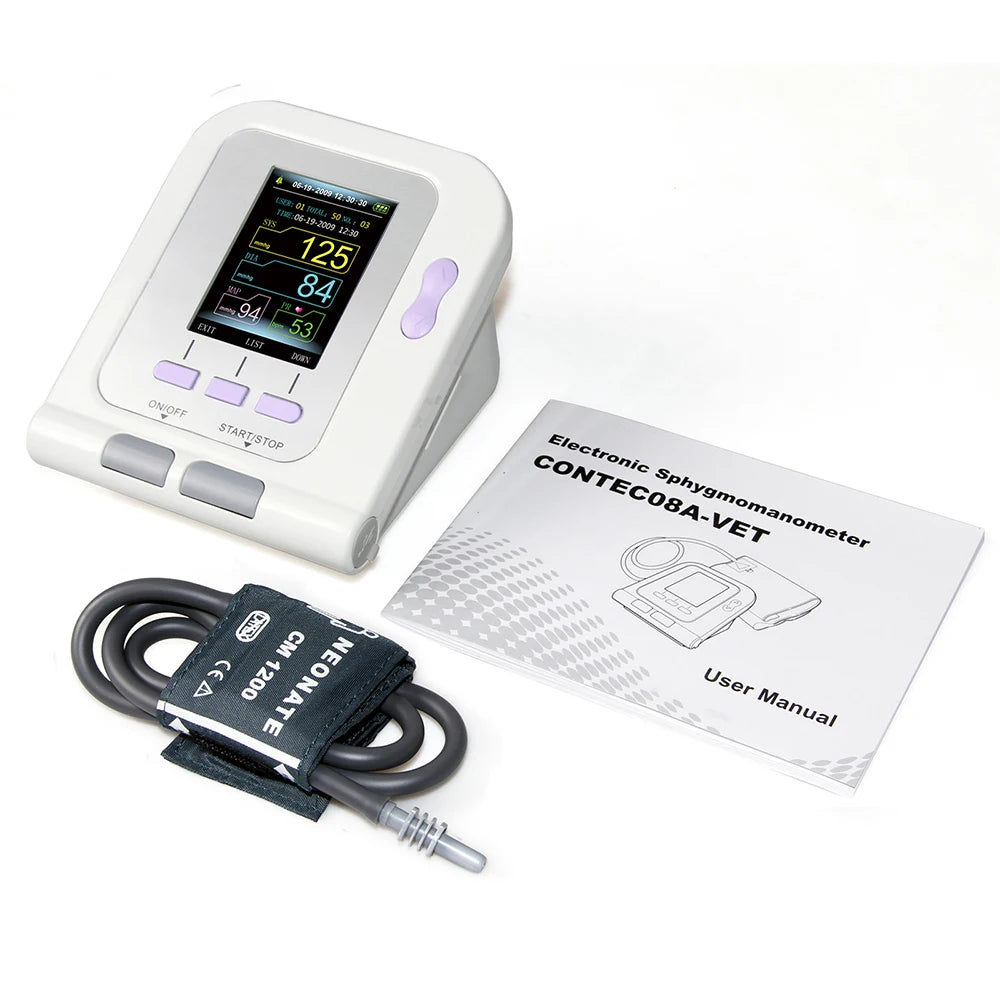

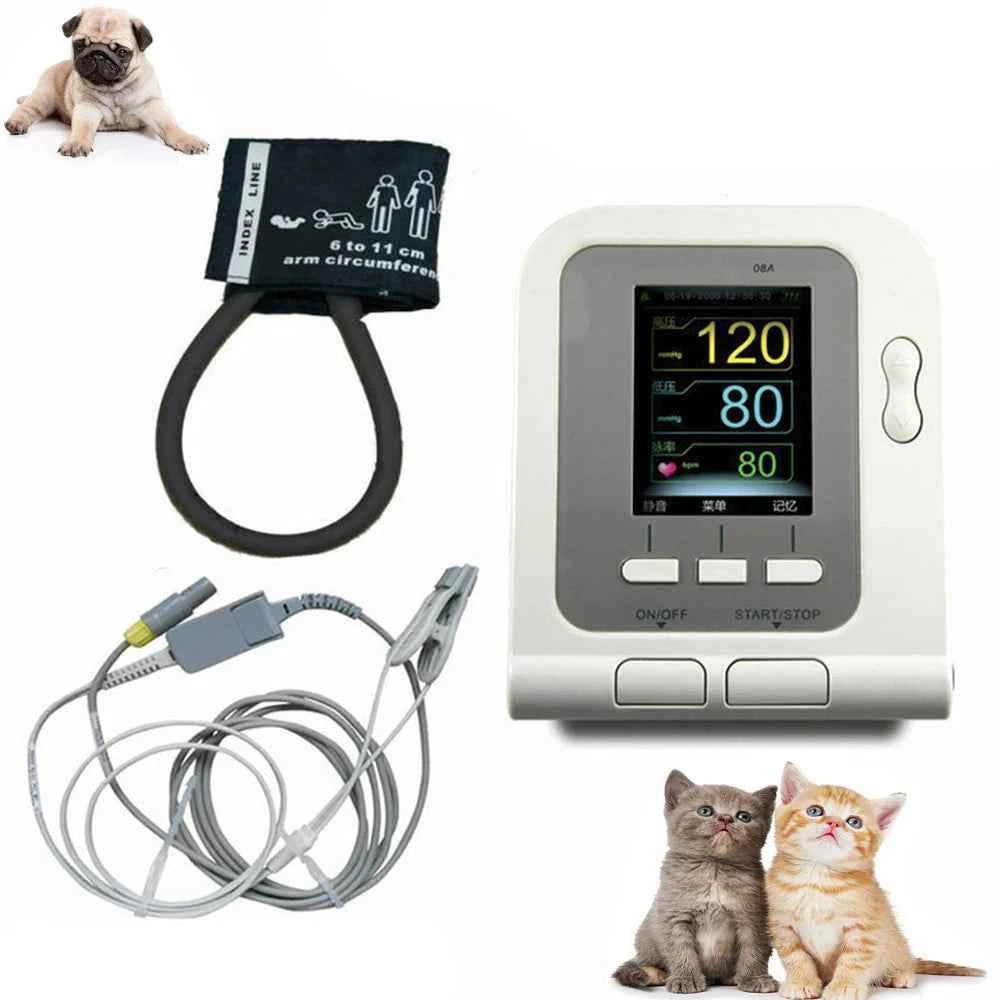

Package included:

1X CONTEC08A-VET Electronic Sphygmomanometer

1X 6-11CM Cuff

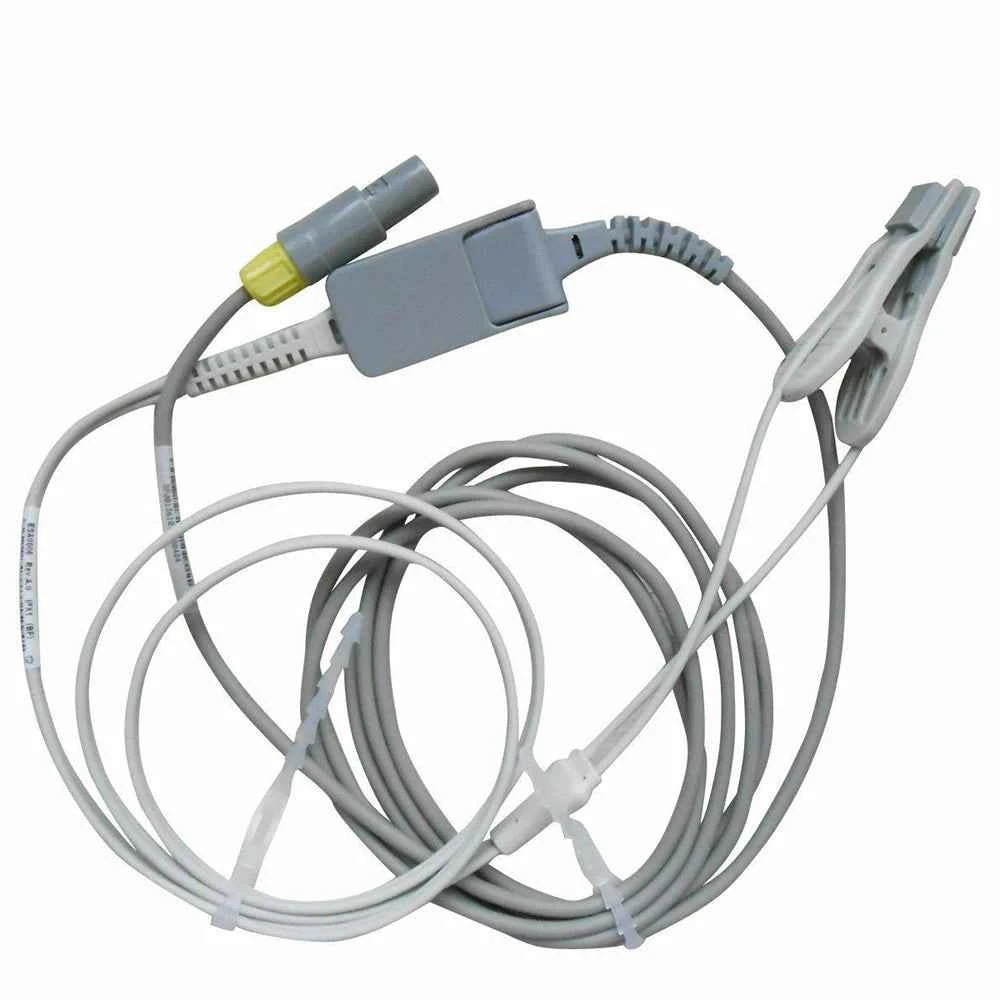

1X Veterinary VET probe

1X VET SpO2 probe extension cable

1X USB Cable

1X User manual

Power adapter (optional,not include)
